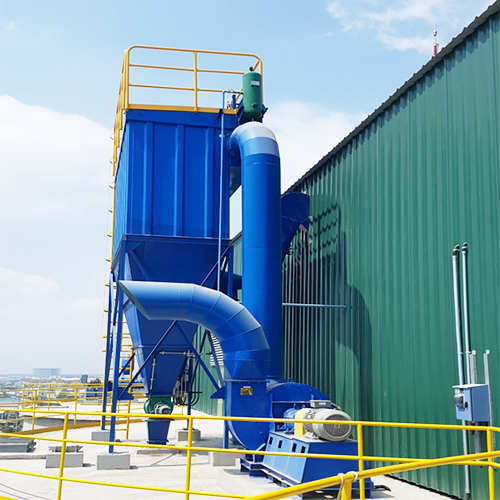

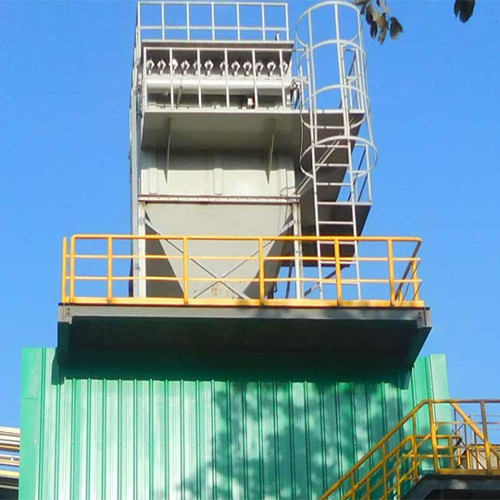

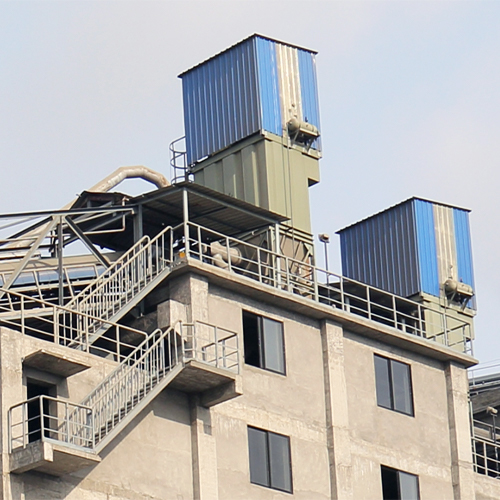

Single bag house

  • Product :

    Single bag house

  • Application :

    Applied for environment dedusting points

  • Working condition :

    Normal temperature

  • Apply temperature :

    120℃, peak value:150℃

  • Dust content inlet :

    ≤200 g/m³

  • Performance :

    ≤10 mg/Nm³

  • Warranty :

    3 years

  • Contract :

    EP/EPC

  • Delivery :

    Sea/air/inland transportation

  • Payment terms :

    T/T,L/C & Others

Product Selection

Product Features

  • Visualized 3D model for design verification and optimization

    3D modeling can provide intuitive intermediate connection structure, ensure the equipment accurate manufacturing and at the same time provide the packaging model with packing list which is helpful to control transportation cost.

  • Modular design can handle with various gas volume by different arrangement and combination

    For single bag house, the filtration area as 22~84 m² and gas disposal volume as 1320~9000 m3.

  • Advanced design technology to ensure uniform air distribution

    CETEC can analyze physical capability of each system, optimize the fluid dynamics and study the efficiency of pollution removal by Ansys Fluent and CFD software. Based on the analysis to adjust inlet duct location, deflector and duct baffle to get optimal air distribution and reduce air speed.

  • Offline pulse cleaning with differential pressure control by PLC and DCS system

    The offline pulse cleaning effect is more thorough and maintenance can be carried out online. The large volume bag house is generally designed as an offline structure and has two dust cleaning functions that can be switched offline and online depending on the working conditions. No matter whether online or offline dust cleaning is chosen, it will not affect the operation of the bag house.

Erection Procedure

Erection of bag house from bottom to up.Ensuring hopper and chamber welding no leakage by strict leakage detection measures.
Checking and cleaning the impurities and iron filings in the gas path before the installation of the injection system.At the same time of ensuring the same distance between the spout and the tubeplate, the spout and the bag mouth should be concentric.
The filter bag shall not be scratched by hard objects and the mouth of the bag shall be pinched into a concave shape, so that it can be fully embedded with the tubeplate.Inserting the bag cages into the filter bags gently to avoid scratching the filter bag until the cover is pressed on the cell.
Fluorescent powder leakage detection is the key method to check whether there is a leak point, ensure good sealing and low emission concentration.In order to prevent water vapor from condensing and dust from pasting the bags, the external insulation layer should be added to ensure that the gas temperature is 25~35℃ higher than the dew point.

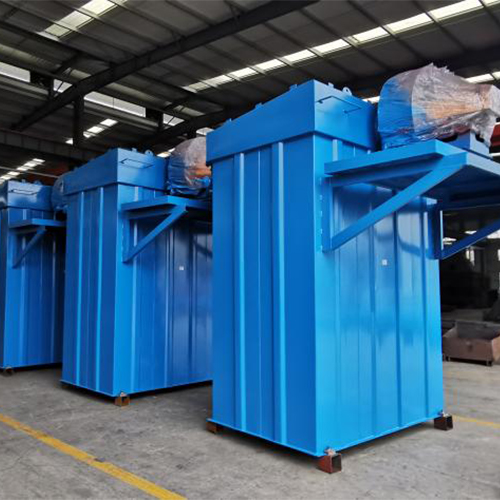

Manufacturing Process
