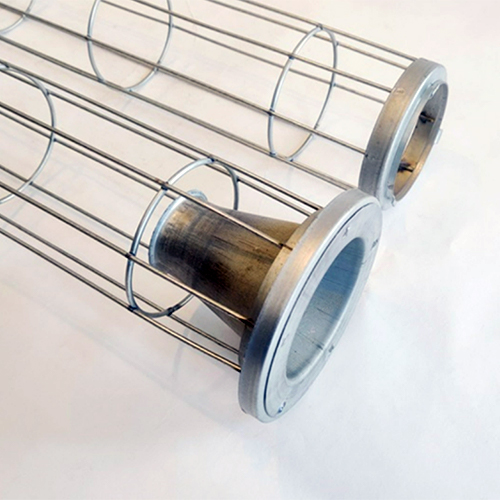

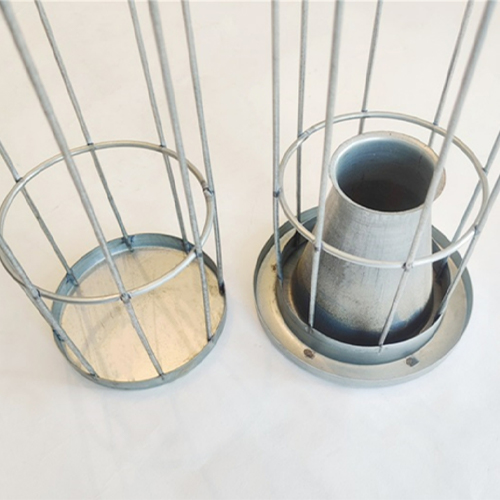

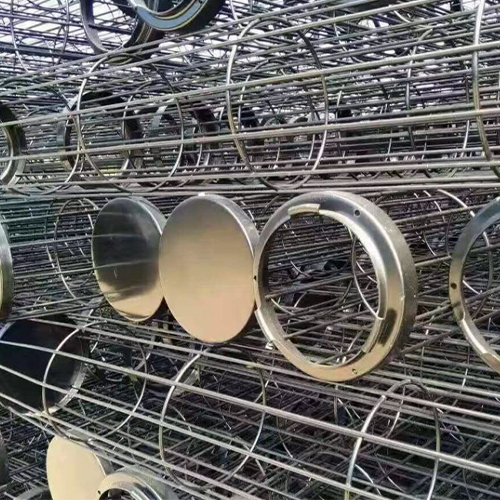

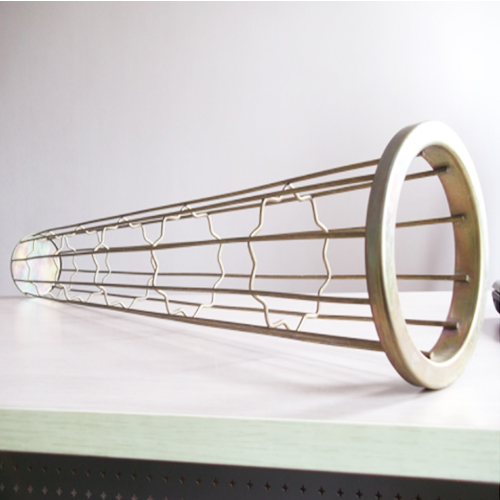

Galvanized bag cages

  • Product :

    Galvanized bag cages

  • Application :

    Applied for filter bags of bag filter

  • Working condition :

    High temperature

  • Apply temperature :

    ≤260℃, peak value:280℃

  • Dust content inlet :

    ≤1500 g/m³

  • Performance :

    ≤10 mg/Nm³

  • Warranty :

    2 years

  • Contract :

    EP/EPC

  • Delivery :

    Sea/air/inland transportation

  • Payment terms :

    T/T, L/C or others

  • Supplying ability :

    2000 piece/day

Product Selection

Product Features

  • Bag cages have smooth surface without welding slag and burr, which will scratch filter bags when installed.

  • Anti-corrosion and high temperature resistance with organic silicon or galvanized coating.

  • There is no missing welding and sealing off. High welding strength can ensure no bending or deformation.

  • To fully support the filber bags with sufficient strength,verticality and accurate dimension.


Erection Procedure

Installing filter bags carefully.
Covering the bags with carton plates or other soft plates in case the workers stand directly on the bags.
Inserting one part of the bag cages into the filter bags and applying a short bar to keep one section of bag cages out of the bags.
Connecting the other part with first part firmly, then putting the whole bag cage into the filter bags smoothly.
